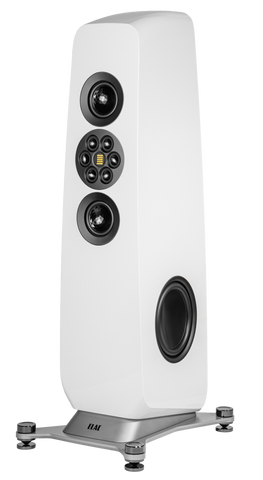

Concentro M 807

The CONCENTRO M 807 exemplifies a passion for form, function, and precision detail. Its striking three-dimensional baffle, with flowing contours and sweeping curves, draws the eye and guides it across the speaker’s elegant geometry.

The cabinet, available in high-gloss black or white, is meticulously finished and accented with premium aluminum components, either die-cast or precisely milled from solid material.

At the heart of the CONCENTRO M 807 lies ELAC’s pioneering VXe (Variable Coaxial Electric) technology. Designed to deliver unmatched clarity and spatial realism, VXe employs a circular array of six ultra-compact A-XR (Aluminum – eXtended Range) midrange drivers. Together, they form an acoustically ideal ring radiator, critical for rendering the nuances of musical space and precise sound localization.

Product Specifications

Height: 1340mm
Width: 461mm
Depth: 595mm
Weight: 62 kg
Type: 4-Way, Bass Reflex
Woofer: 2 x 250mm AS Cone
Low-Midrange: 2 x 115mm AS-XR Cone
High-Midrange: 6×40mm A-XR Cone
Tweeter: Jet 6c
Crossover Frequency: 150 | 650 | 2650 Hz
Nominal power handling: 300 Watts
Minimum Impedance: 3.1 Ohms @ 350 Hz
Peak Power Handling: 400 Watts
Frequency Range (IEC 268-5): 24 – 50,000 Hz
Sensitivity: 88 dB / 2.83V/m
Suitable for Amplifiers: 4 – 8 ohms
Nominal Impedance: 4 Ohms
Recommended amplifier power: 80 – 600 Watts per channel
Finishes: Black High Gloss, White High Gloss; Deco Rings in Black or Gray
Accessories Included: Bi-Wiring Set, Polishing Cloth, Transport Straps
